 Input
(Common Multi):
Thermocouple, RTD,
mV, mA

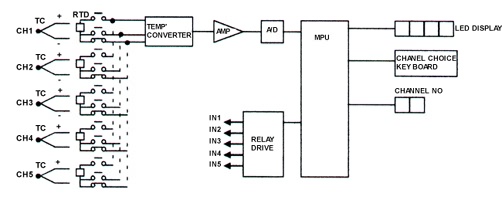

Input channel:
12CH (MAX: 99 CH
option)
Indicating Accuracy:
± 0,25% FS
Display:
7 segment LED
Reaponse Time:
Approx. 100ms
Resolution:
± Digit
Hysterics:
Approx. 0,5% of FS
Setting width:
Full Scale
External Rezistance:
300 ohmi at Maximum TC Input
10 ohmi Per a wire for RTD Input |
Ambient Temperature:
-10 ÷ 50°C
Power Source Voltage:
AC10/220V 50/60Hz
Permissible Power Source Function:
± 10% of Nominal Voltage
Setting Accuracy for common alarm:
± 0,5% of FS
Setting Resolution:
1 Digit
Cold Junction Compensation:
Fitted as standard for TC input
Auto time:
2 sec (Key Adjust)
Dimension:
288 x 288 x 355mm |
